Arduino RGB lamp

YEAR: 2013
PROJECT STAGE: Complete
MAKER: Roberto Gallea

Introduction

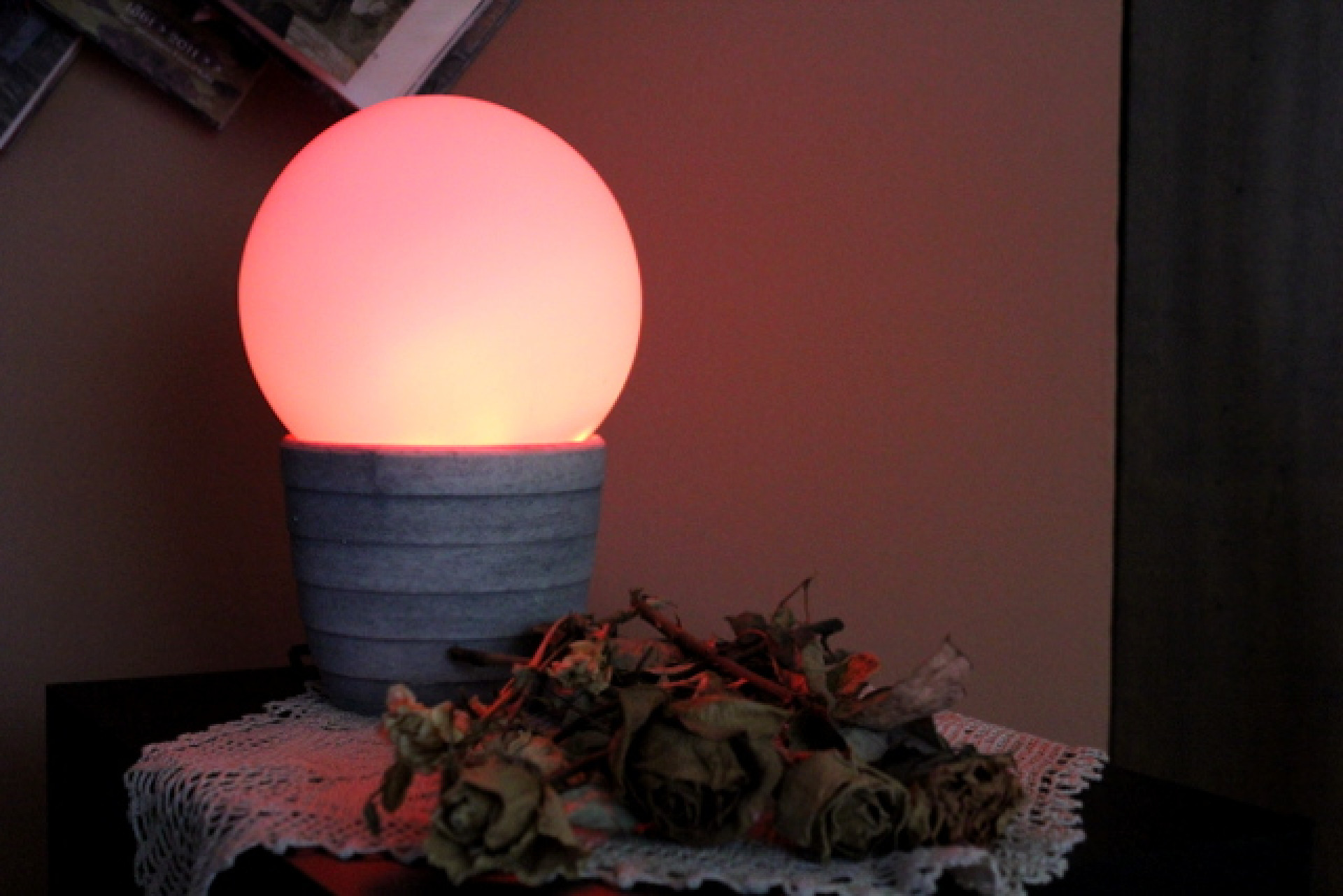

This project is the realization of a "furniture-compatible" DIY RGB lamp I made. it uses Arduino-based hardware. The whole project is DIY, both in the microcontroller part and in the lamp part.

Required parts for the project:

Arduino platform parts:

1x ATMega328 Microcontroller
1x DIP Sockets Solder Tail - 28-Pin 0.3"
1x Basic LED - Green
1x Resistor 330 Ohm 1/6th Watt PTH
1x Resistor 10k Ohm 1/6th Watt PTH
1x Mini Push Button Switch
2x Electrolytic Decoupling Capacitors - 10uF/25V
1x Voltage Regulator - 5V
1x Crystal 16MHz
2x Capacitor Ceramic 22pF
Some Female Headers
Some Jumper Wires

Lamp platform parts

3x BC337 Transistors

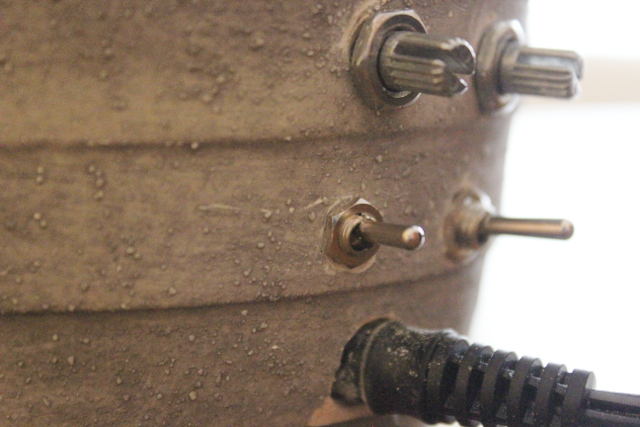

2x 10k potentiometer
1x ON/OFF switch
1x ON/OFF/ON switch
2x Resistor 10k Ohm 1/6th Watt PTH

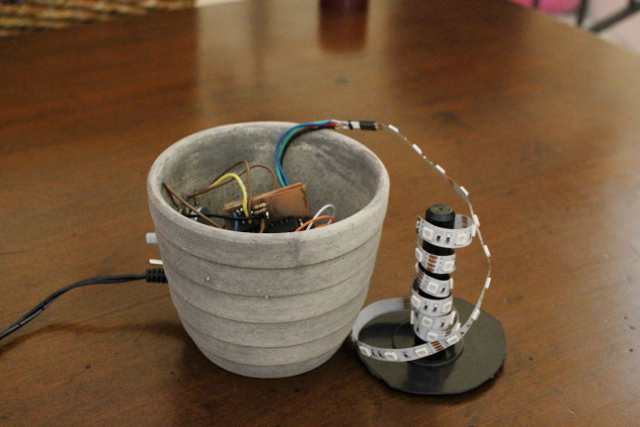

Some 12v RGB led strip (I used 50cm)
Some male and headers
